Sandvik Stationary Crushers

Lutze Process Belux BV and Lutze Process Netherlands BV are Sandvik's authorized dealer of stationary crushers for over 10 years. Our expert sales people can help you with any questions related to the following crusher types and their spare and wear parts:

Cone crushers
Jaw crushers
Horizontal (HSI) and vertical (VSI) shaft impact crushers
Primary gyratory crushers
Roll crushers
and the related crusher automation and control systems

Consult below overview for more detailed information about the Sandvik crushers.

Sandvik stationary crushers only available from

Lutze Process Belux BV

Preflexbaan 153

BE-1740 Ternat

cns@lutze-group.com +32 2 481 09 60

Lutze Process Netherlands BV

Tasveld 23

NL-3417 XS Montfoort

cns@lutze-group.com +32 2 481 09 60

Sandvik's range of stationary crushing equipment engineered for maximum productivity

CH895i

Stationary cone crusher

Capacity: 258 - 1077 MTPH

Max. feed size: 127 mm

Motor power: 750 kW (1000 hp)

CH890i

Stationary cone crusher

Capacity: 275 - 1837 MTPH

Max. feed size: 428 mm

Motor power: 750 kW (1000 hp)

CH870i

Stationary cone crusher

Capacity: 208 - 1370 MTPH

Max. feed size: 350 mm

Motor power: 600 kW (805 hp)

CH865i

Stationary cone crusher

Capacity: 155 - 517 MTPH

Max. feed size: 123 mm

Motor power: 500 kW (670 hp)

CH860i

Stationary cone crusher

Capacity: 250 - 910 MTPH

Max. feed size: 315 mm

Motor power: 500 kW (670 hp)

CH840i

Stationary cone crusher

Capacity: 212 - 659 MTPH

Max. feed size: 250 mm

Motor power: 330 kW (443 hp)

CH830i

Stationary cone crusher

Capacity: 61 - 283 MTPH

Max. feed size: 211 mm

Motor power: 250 kW (335 hp)

CS840i

Stationary cone crusher

Capacity: 212 - 659 MTPH

Max. feed size: 431 mm

Motor power: 330 kW (442 hp)

CH660

Stationary cone crusher

Capacity: 116 - 646 MTPH

Max. feed size: 321 mm

Motor power: 315 kW (422 hp)

(known as H6800 crusher before)

CH440

Stationary cone crusher

Capacity: 58 - 336 MTPH

Max. feed size: 250 mm

Motor power: 220 kW (295 hp)

CH430

Stationary cone crusher

Capacity: 26 - 215 MTPH

Max. feed size: 214 mm

Motor power: 132 kW (177 hp)

CH420

Stationary cone crusher

Capacity: 23 - 135 MTPH

Max. feed size: 155 mm

Motor power: 90 kW (121 hp)

CS660

Stationary cone crusher

Capacity: 314 - 908 MTPH

Max. feed size: 622 mm

Motor power: 315 kW (422 hp)

CS440

Stationary cone crusher

Capacity: 191 - 510 MTPH

Max. feed size: 500 mm

Motor power: 220 kW (295 hp)

CS430

Stationary cone crusher

Capacity: 99 - 298 MTPH

Max. feed size: 400 mm

Motor power: 132 kW (177 hp)

CS420

Stationary cone crusher

Capacity: 70 - 172 MTPH

Max. feed size: 267 mm

Motor power: 90 kW (121 hp)

CJ815

Stationary jaw crusher

Capacity: 480 - 1160 MTPH

Feed opening: 1500 x 1300 mm

Motor power: 200 kW (275 hp)

CJ615

Stationary jaw crusher

Capacity: 385 - 1085 MTPH

Feed opening: 1500 x 1070 mm

Motor power: 200 kW

CJ613

Stationary jaw crusher

Capacity: 330 - 960 MTPH

Feed opening: 1300 x 113 mm

Motor power: 160 kW (250 hp)

CJ412

Stationary jaw crusher

Capacity: 165 - 790 MTPH

Feed opening: 1200 x 830 mm

Motor power: 132 kW (200 hp)

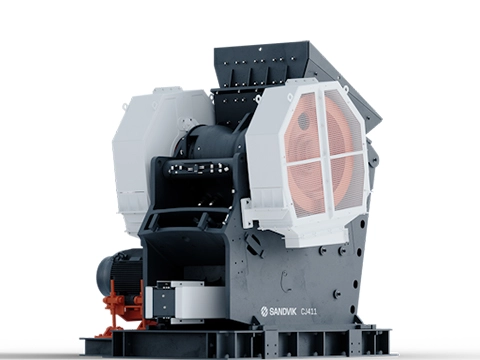

CJ411

Stationary jaw crusher

Capacity: 150 - 565 MTPH

Feed opening: 1045 x 840 mm

Motor power: 110 kW (150 hp)

CI721

Stationary horizontal shaft impact crusher

Capacity: 200 - 400 MTPH

Max. feed size: 900 mm

Motor power: 250 kW (335 hp)

CI732

Stationary horizontal shaft impact crusher

Capacity: 250 - 575 MTPH

Max. feed size: 350 mm

Motor power: 440 kW (590 hp)

CI722

Stationary horizontal shaft impact crusher

Capacity: 150 - 250 MTPH

Max. feed size: 350 mm

Motor power: 250 kW (335 hp)

CI731

Stationary horizontal shaft impact crusher

Capacity: 400 - 700 MTPH

Max. feed size: 1000 mm

Motor power: 440 kW (590 hp)

CI712

Stationary horizontal shaft impact crusher

Capacity: 150 MTPH

Max. feed size: 300 mm

Motor power: 185 kW (250 hp)

CI711

Stationary horizontal shaft impact crusher

Capacity: 200 MTPH

Max. feed size: 600 mm

Motor power: 185 kW (250 hp)
