LUWITAN® wear protection plates

LUWITAN® Polyurethane plates provide excellent protection

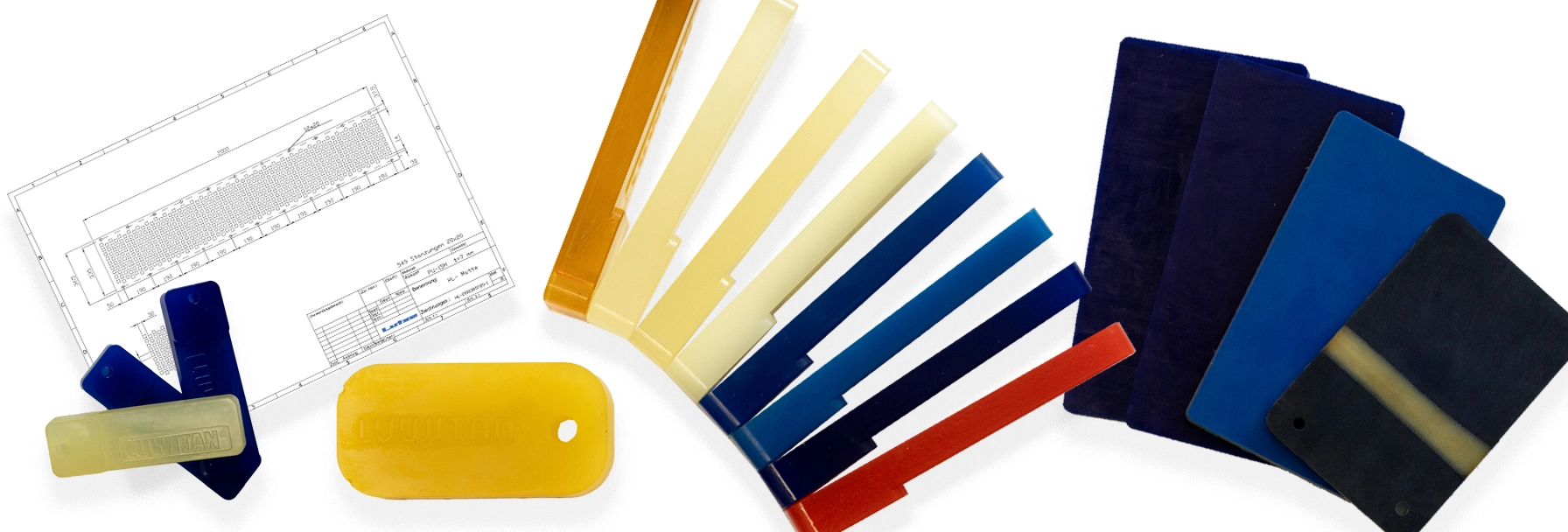

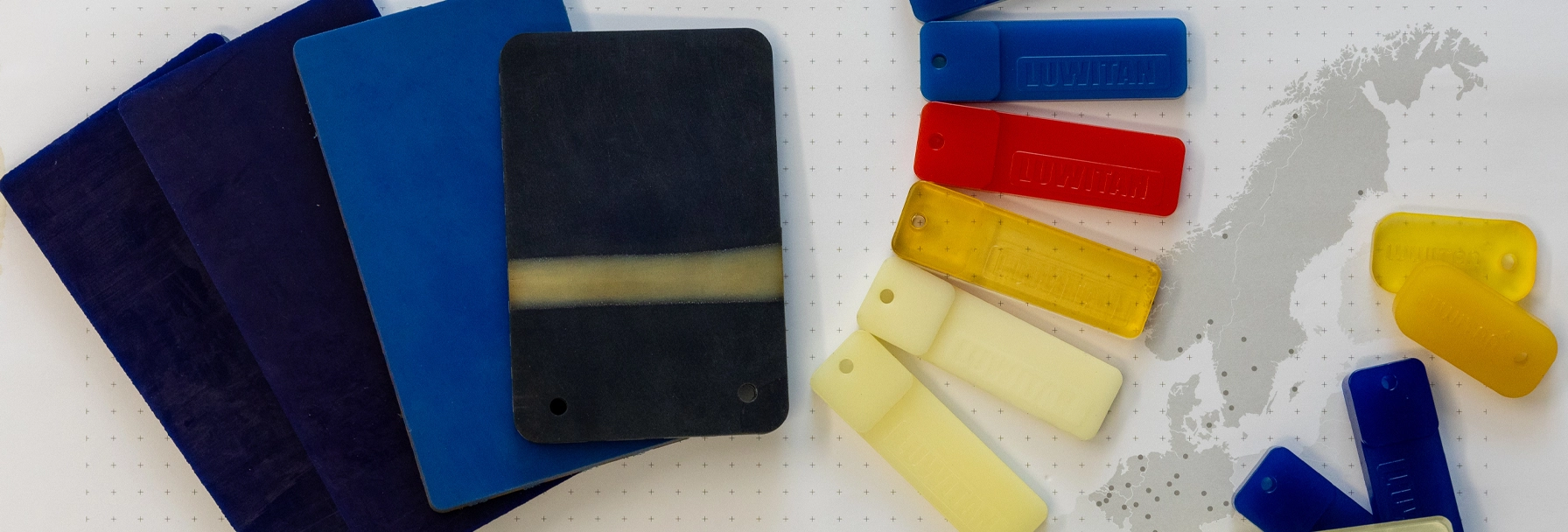

Our LUWITAN® plates with and without metal inserts

LUWITAN® polyurethane plates offer an excellent solution for applications where wear protection, corrosion resistance and noise insulation are required. Their properties make them particularly suitable for use in industries, where components are often exposed to extreme conditions.

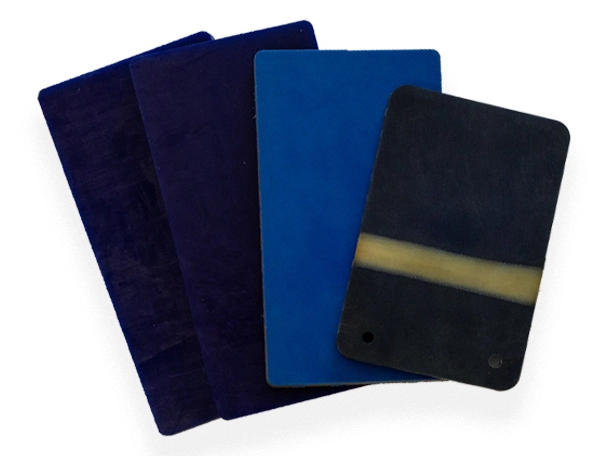

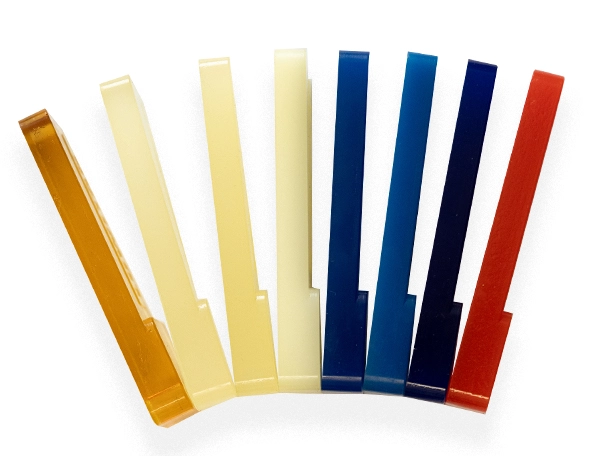

LUWITAN® Platten Muster

Here are some of the most important advantages and properties:

  • Highly wear-resistant: The plates effectively protect components from mechanical abrasion.
  • Product integrity: The product is protected from deformation and destruction.
  • Good sliding properties: Ideal for applications where friction must be minimized.
  • Noise-insulating: A reduction of up to 40 dB significantly improves the working environment.
  • Weather and hydrolysis resistant: These properties ensure a long service life even under difficult environmental conditions.
  • Microbe resistant: This ensures hygienic conditions, especially in sensitive areas.
  • Chemical resistance: They are resistant to many media such as oils and fats.
  • Food approval: They meet FDA requirements, making them ideal for use in the food industry.
  • Electrically conductive: LUWITAN® offers conductive properties with a resistance of < 10⁹ Ω.
  • Easy to process: The plates are easy to install, replace and repair using our LUWIREP®.

The ability to offer different dimensions and Shore hardnesses (45 and 95 Shore A) enables a tailor-made solution for specific requirements. Our standard dimensions are 1,000 x 3,000 mm and thicknesses from 1 to 50 mm. Our LUWIREP® repair system also offers fast on-site repairs, which minimizes downtime.

If you need more information or have specific questions, please contact us!

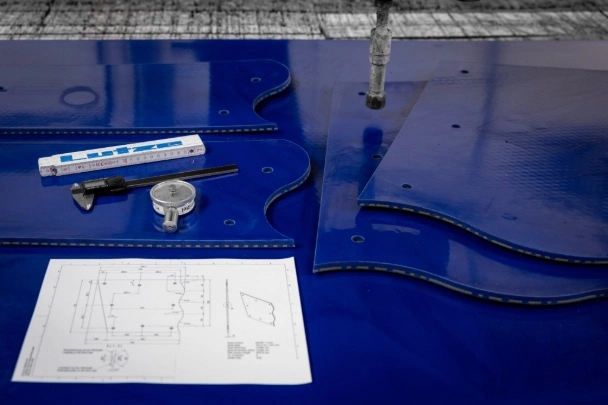

LUWITAN® Platte auf WSA geschnitten
Christian Drees

"…external dynamic loads as well as mechanical abrasion can be an issue in many applications. Our LUWITAN® is very well suited and very resistant to these loads and wear."

Chrtistian Drees | Sales Manager Lutze Kunststofftechnik GmbH & Co. KG

Production of our LUWITAN® plates using the spin-moulding process

Quality of the components

The right mix of high-quality ingredients is essential for the quality of the wear protection plate. Attention is paid to purity and cleanliness, which is important for the efficiency and longevity of the product.

Manufacturing techniques:

  • Spinning process: This technique is used to produce evenly distributed and defect-free plates with a low tolerance.
  • Table casting (open): A more traditional casting process in which the still liquid polyurethane is poured in an open mold.

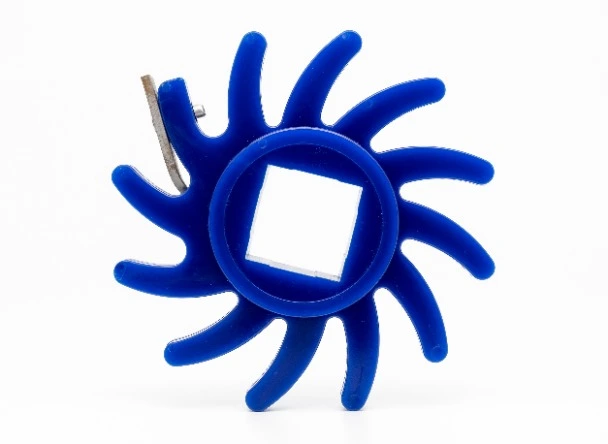

  • Mold casting: Here the liquid polyurethane is poured in pre-made molds, which is useful for specific applications or geometric requirements.

In summary, the Lutze Group combines various manufacturing processes to produce a wear protection plate that is robust, durable and designed for the corresponding application.

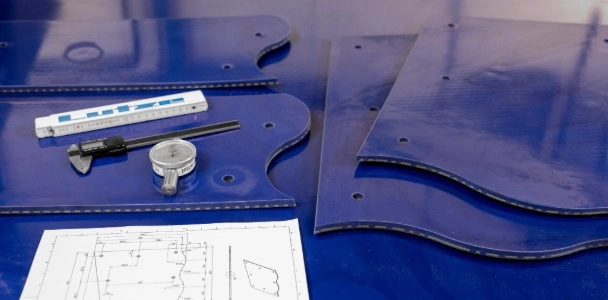

LUWITAN® plates cut into shape

using waterjet cutting

We are pleased that you have recognized the advantages of our LUWITAN® plates! With our modern waterjet cutting machine, we can offer you custom-made solutions that are perfectly tailored to your requirements. No matter what shape you need – our systems enable precise and versatile cutting to optimally meet your specific needs.

Is there a specific shape or dimension that you would like to inquire about? We are ready to implement your requirements precisely and efficiently.

LUWITAN® Platten in Form geschnitten

Application examples

Areas of application for LUWITAN® wear protection plates

LUWITAN® wear protection plates

Material guidance

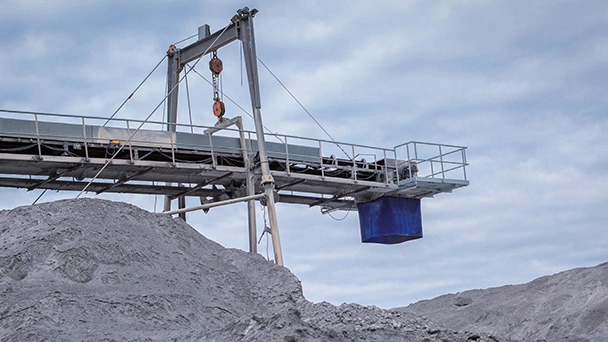

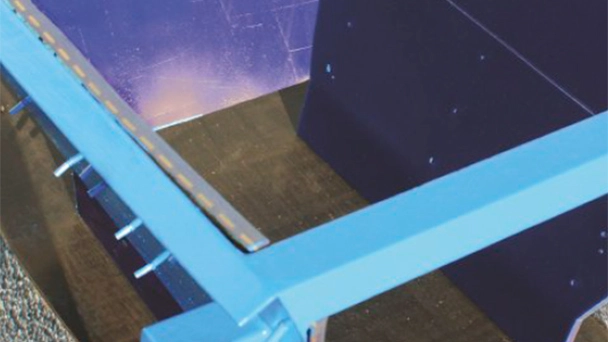

The LUWITAN® material guidance is a supplement to the sealing of transfer and loading points on the conveyor belt. This prevents system contamination and dust emissions. In the hopper area and in the impact zone, the material guide has perforated steel sheet inserts in the upper area and can therefore be easily installed. No perforated sheet is incorporated in the sealing area.



Other dimensions and designs are available on request.

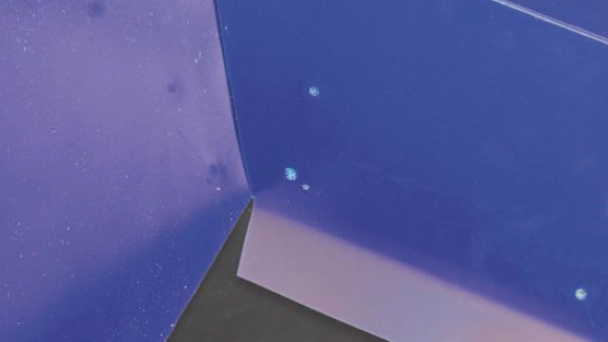

Wear protection with LUWITAN® using the example of a hopper

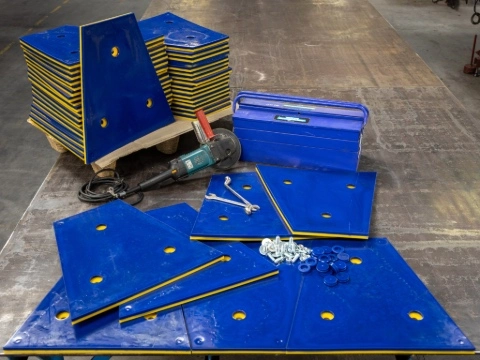

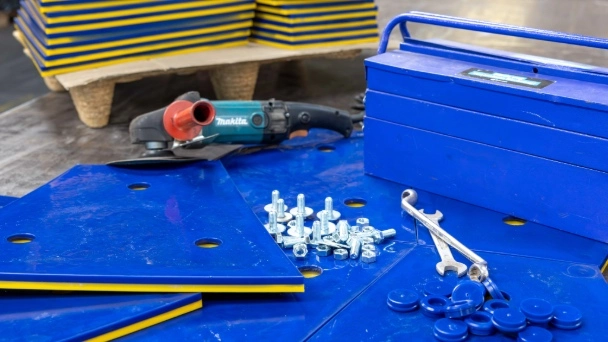

Hopper and container liners

LUWITAN® polyurethane plates are used to protect components from wear, corrosion and adhesion. Thanks to the integrated perforated sheet metal insert made of steel or aluminum, the panels can be screwed into funnels and containers or glued using an optional adhesive layer.

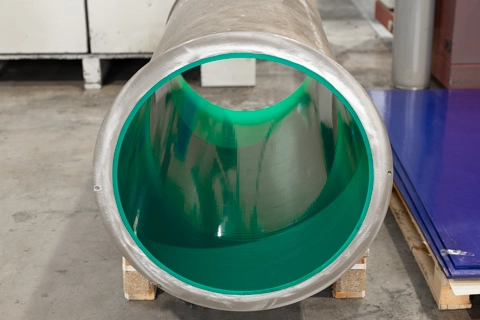

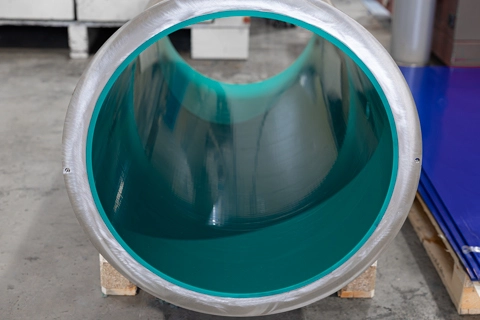

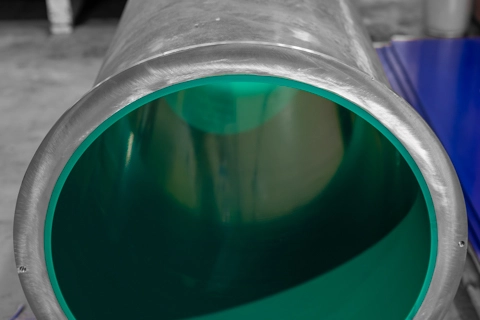

LUWITAN® Rohrauskleidung grün

Inner surface coating using the centrifugal process – uniform, resistant, economical.

The coating is distributed evenly by centrifugal force, creating a smooth and durable protective layer. Pipes with flanges or branches can also be coated reliably. The exact layer thickness ensures long durability, protects against wear and improves the flow properties. This keeps the surface free of deposits and the component can be used for longer.



Main advantages

  • Smooth surface: The coating is evenly distributed and ensures a clean, pore-free inner surface.
  • Exact layer thickness: The process allows the layer thickness to be precisely controlled, without fluctuations or uneven spots.
  • Durable: The even and dense coating reliably protects against wear and extends the service life of the components.
  • High resistance: Reliably protects against chemicals, abrasion and corrosion.
  • Good adhesion: The coating bonds firmly to the surface and remains permanently stable, no seams or joints.
  • Complex geometries possible: Pipes with flanges, branches or special shapes can also be coated without any problems.
  • Optimal flow properties: The smooth inner surface reduces deposits and improves the flow.
  • Avoidance of high tool costs: Since the process does not require complex molding tools, the costs are often lower compared to alternative processes.
  • Reduced use of materials: The precise control ensures that only as much material is used as is necessary.
  • Economical and efficient: Saves maintenance effort, reduces failures and ensures long-lasting components.

more examples

  • Chutes and transfer stations
  • Basin lining
  • Corrugated protection pipe
  • Vibrating chutes
  • Chute boxes
  • Conveyor buckets
