Custom-Made Conveyor Belt Confectioning
If you don't find it here, you won't find it anywhere
In our Lutze Group confectioning workshops, we can make any conveyor belt on demand, ensuring what we deliver is optimally adapted to its respective purpose.
The capabilities we have in those workshop are pretty much unlimited:
- cutting
- punching
- confectioning cleats, sidewalls or other components from various materials onto belts
- high precision and high-performance splices of various types of conveyor belts using cold gluing, hot vulcanising or mechanical processes
- combining rubber products with synthetics materials such as PVC and polyurethane.
We excel in providing custom conveyor belt solutions for unique applications, and ensure top performance and reliability. With a global export network, we deliver tailored conveyor belts worldwide.

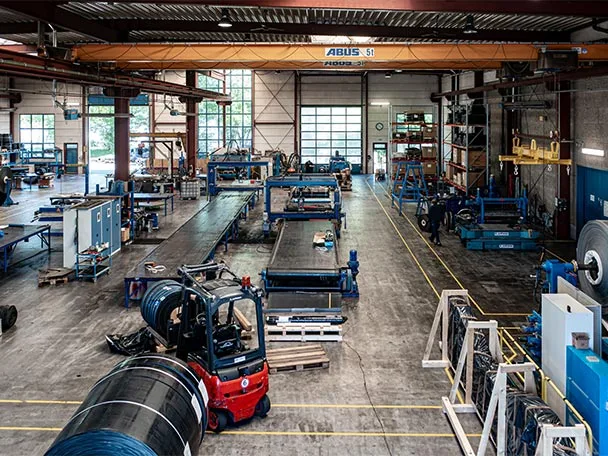

View inside our confectioning hall in Einbeck
Some examples of special conveyor belts we can produce
Profiled belts (chevron belts) in special designs and dimensions
- Griptop / Napula (profile heights 6/15/32 mm, belt widths up to 2000mm)
- Cleat and sidewall belts (profile heights up to 300mm, belt widths up to 2000mm)
- Dosing belts, belts for overbelt magnets, aquamator belts
- Belts with longitudinal guide profiles (running side) or side seals (carrying side)

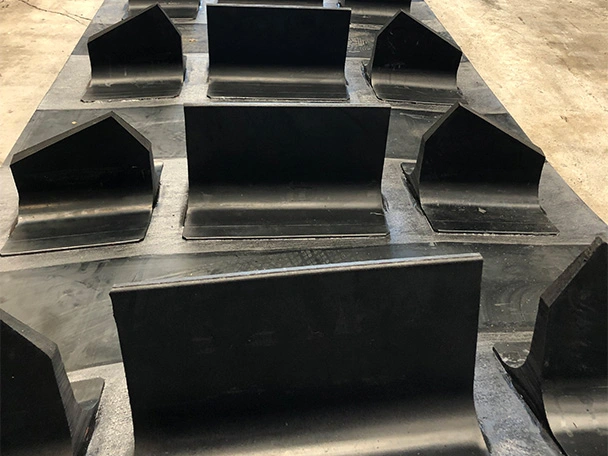

Custom made belt with cleats

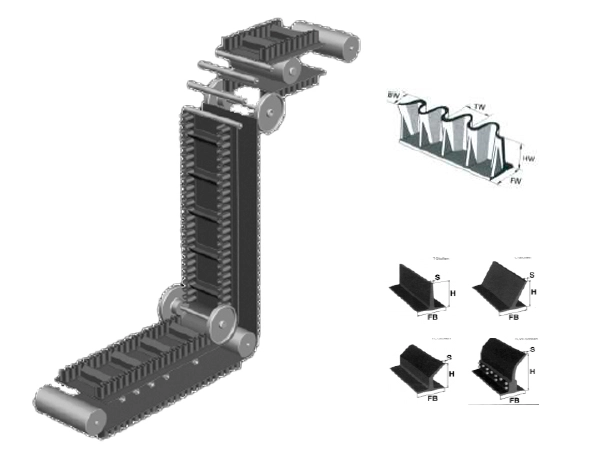

Sidewall conveyor belt for vertical transport

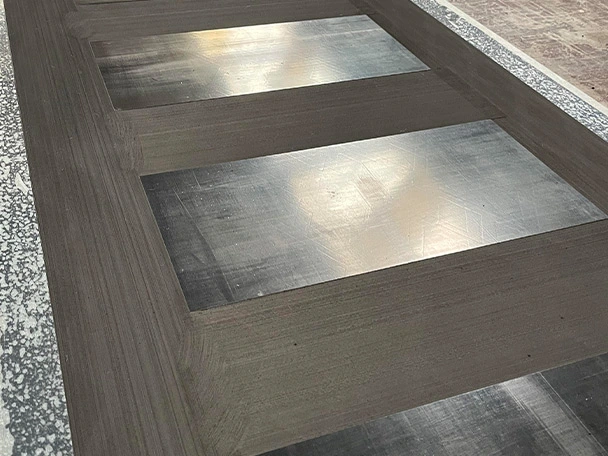

Belt after grinding areas where cleats and sidewalls need to be installed
Hot vulcanized rubber cleat on conveyor belt
Conveyor belts with screw-on cleats 235 x 30 x 30mm
As an alternative to glued or vulcanized cleats, we can also offer easily exchangeable cleats that are fastened with screws. The LUWITAN® Screw-on cleats are especially suitable for high abrasive or chemically stressed applications in which our polyurethane quality will outlast comparable rubber components.
Fastening material
The LUWITAN® Screw-on cleats are fixed using special washers and M8 x 30 mm hexagon socket screws. For optimal installation the screws are tightened with a torque of 6Nm and fixed with screw lock fluid (e.g. Loctite).

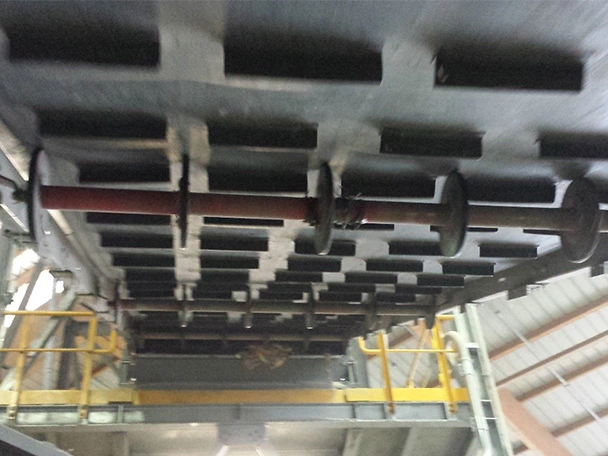

Rubber conveyor belt with screw-on cleats installed

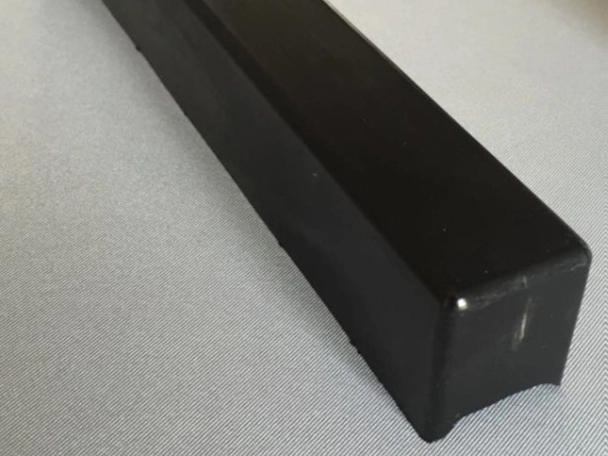

Screw-on cleat

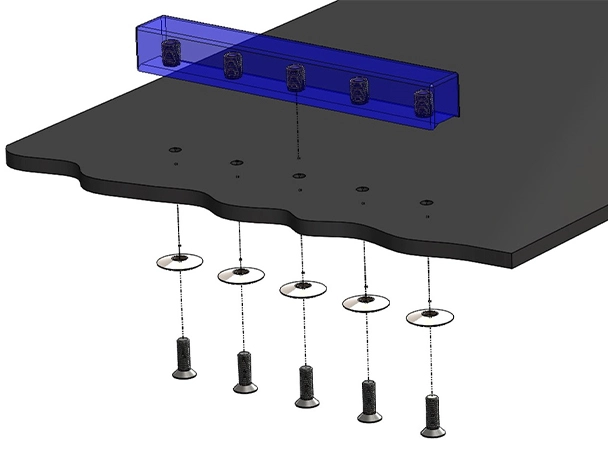

Screw-on cleat fastening method
More specials
- Elevator belts
- Magnet belts
- Vacuum belts for the wood and metal industry
- Sandblasting belts
- Belts that are screwed onto chains with LUWITAN® screw-on cleats from our own production
- High-precision belts for the production of plasterboard
- Saponification belts (a functional belt in the chemical industry)
- Filter belts
- …

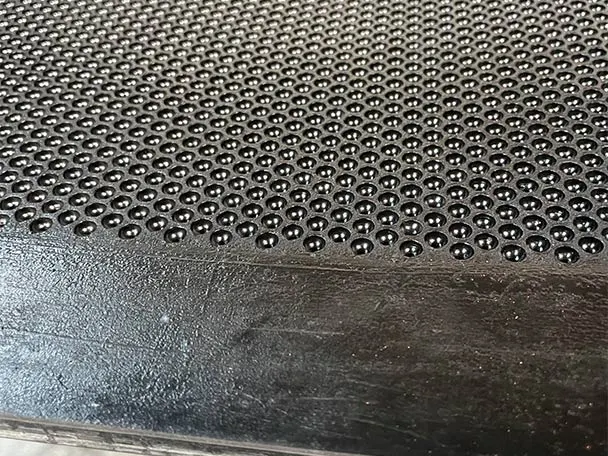

Special process belt for the chemical industry

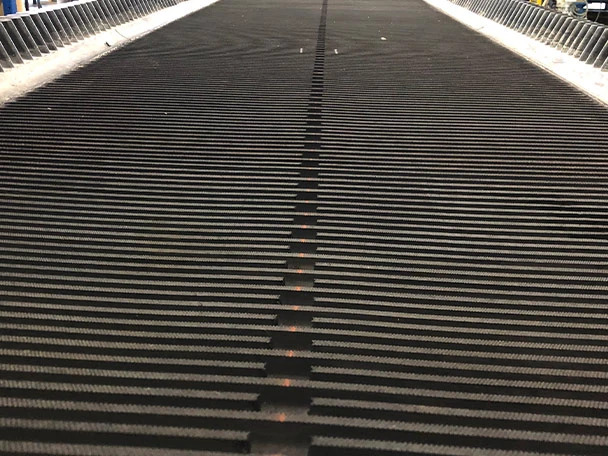

Filter belt

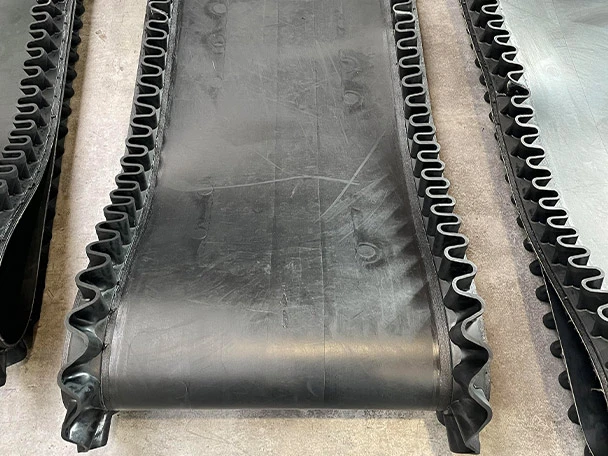

Feeding belt with sidewalls

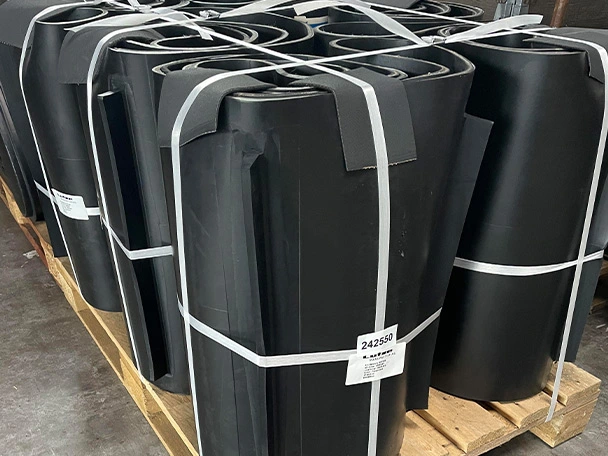

Magnet belts with cleats ready for dispatch
