MDS Mobile Heavy-Duty Trommel Screens

MDS mobile trommel screens only available from

Lutze Process Germany GmbH

Untergath 194

DE-47805 Krefeld

info.krefeld@lutze-group.com +49 2151 6047-464

MDS, a Terex brand, specializes in designing and manufacturing heavy-duty rock trommel screens and conveyors. Their mobile trommel screens, known for robust construction and versatility, are built to handle large rocks, sticky materials, and demanding applications. These units are highly effective in diverse settings like aggregates, quarrying, and recycling, delivering a cleaner final product with superior screening efficiency.

MDS was acquired by Terex in July 2021 in order to complement Terex's existing solutions.

Check out the MDS brochure

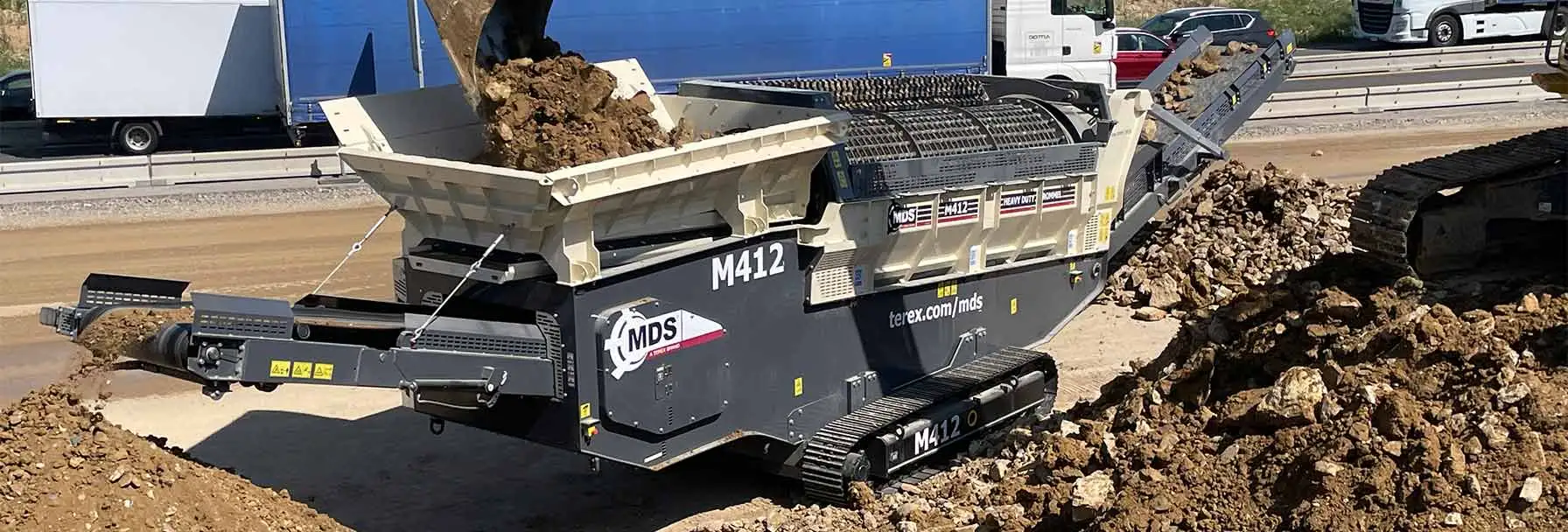

MDS M412 mobile trommel screen

The smallest of the MDS series delivering an impressive output of 300 tons per hour.

Weight: 22 Ton

Drum diameter: 1,25 m

Drum length: 4 m

Output: 2 Fractions

Max feedsize: 600 mm

MDS M413 mobile trommel screen

Ideal for screening everything from lightweight material to recycled demolition waste.

Weight: 30 Ton

Drum diameter: 1,5 m

Drum length: 5,5 m

Output: 3 Fractions

Max feedsize: 600 mm

MDS M515 mobile trommel screen

Perfect for cleaning dirty material and capable of handling stones up to 800 mm in size.

Weight: 48 Ton

Drum diameter: 1,25 m

Drum length: 4 m

Output: 3 Fractions

Max feedsize: 800 mm

MDS M518R trommel screen in wood application

MDS M518R mobile trommel screen

Inspired by customers’ feedback, it has now been added to the MDS product range.

Weight: 20 Ton

Drum diameter: 1,8 m

Drum length: 4,7 m

Output: 2 Fractions
